Category | 2MP (Fixed Lens) | ||||

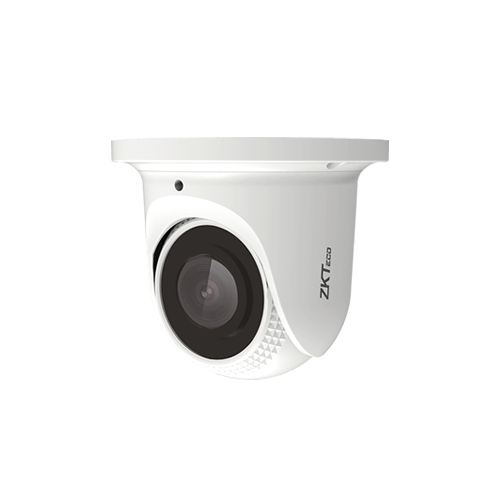

Dome Camera | Bullte Camera | ||||
Model | ES-852O21C-S5 | ES-852O22C-S5 | BS-852O22C-S5 | BS-852O23C-S5 | |
Camera | Image Sensor | 1/2.9" CMOS | |||
Max. Resolution | 1920 x 1080 (2MP) | ||||
Min. Illumination |
Color : 0.01Lux@F2.0 (AGC ON)
B/W : 0.001Lux@F2.0 (AGC ON)
|
||||
Lans | Lens Type | Fixed | |||
Focal Length | 2.8mm | 3.6mm | 3.6mm | 6.0mm | |
FOV | 104.14° | 89.28° | 89.28° | 58.71° | |
Video | Compression | H.265 / H.264 | |||
Privacy Mask (Areas) | 4 | ||||
Facial Detection | Face Detected Per Frame | - | |||
Detected Face Size (Pixels) | - | ||||
Network | Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP, RTMP | |||
Interoperability | ONVIF Profile S, SDK, API | ||||
General | Power Supply | PoE (IEEE802.3af ), DC 12V±10% | |||
Ingress Protection | IP67 |
